Skid-Mounted Cold Room Solutions UAE
A skid-mounted cold room arrives pre-built on its own steel base — insulated structure and refrigeration system as one liftable unit, ready to run within hours of reaching site. ChillerRoom.ae engineers these for the toughest deployments across Dubai, Abu Dhabi, Sharjah and Ajman.
Built to Arrive Ready, Not Half-Finished

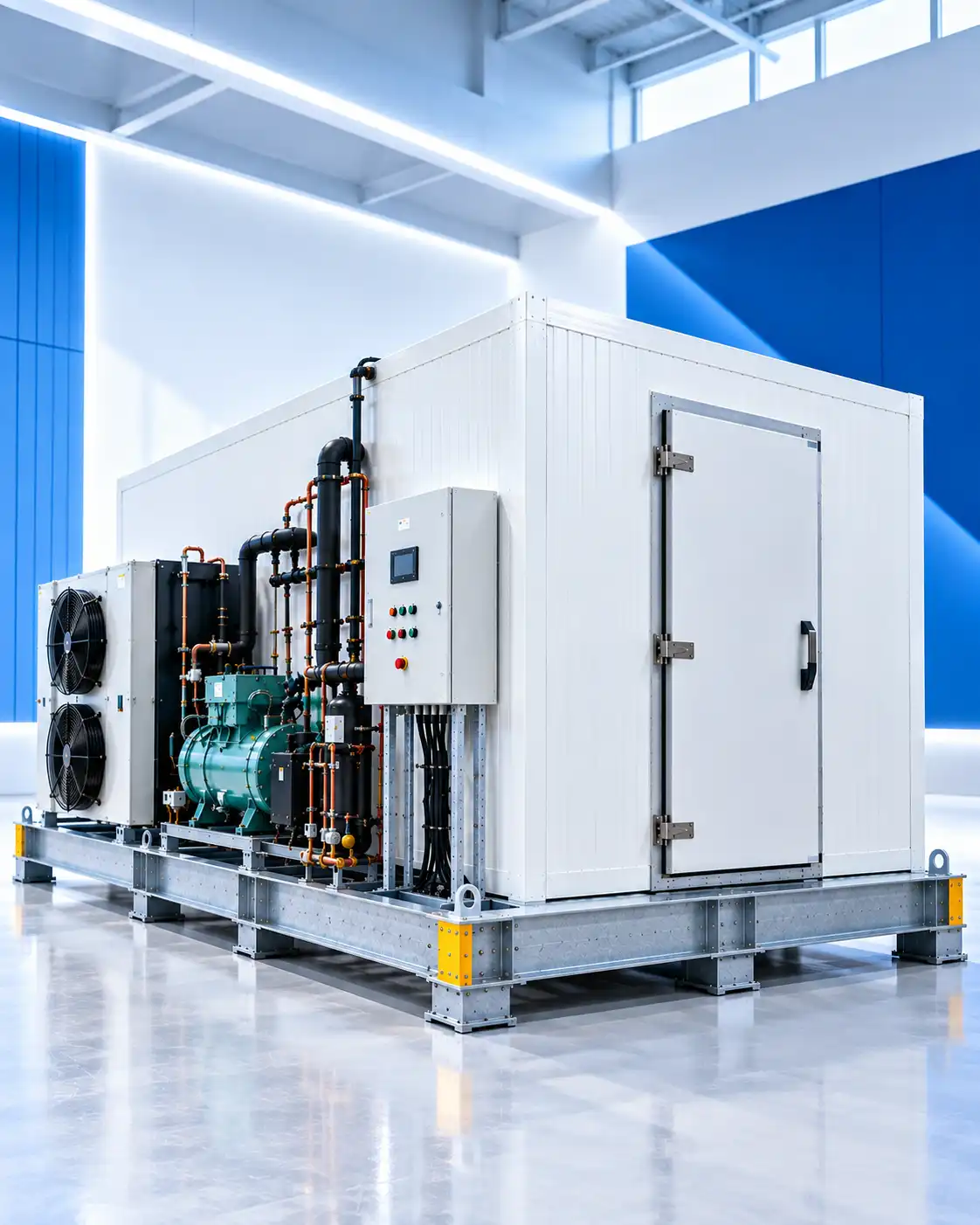

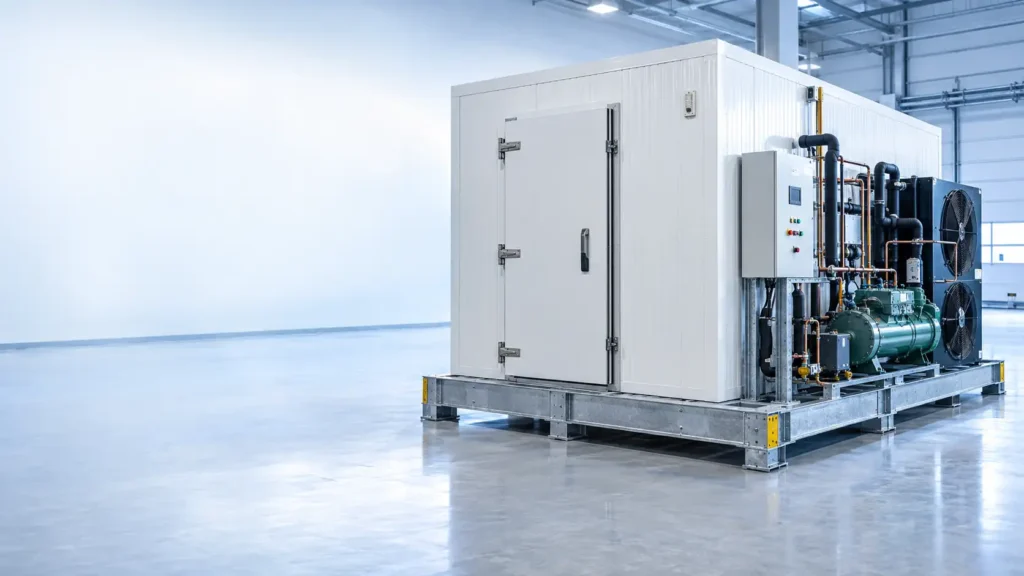

A skid-mounted cold room combines the insulated enclosure and the complete refrigeration system into a single unit on a structural steel base — not to be confused with a refrigeration skid, which is only the mechanical package. Because the whole structure is factory-tested before it ships, it reaches site ready to load, not ready to start weeks of construction.
Chiller variants run 80–100mm PIR panelling for holding 0°C to 8°C; freezer variants step up to 120–150mm to hold -18°C against Gulf heat gain. Every unit is sized to the site’s power supply and access constraints, not built to a fixed catalogue footprint.
- Delivered fully assembled and tested
- No concrete foundation required
- Relocated intact by crane or forklift
- Running within hours of arrival
Which Skid-Mounted Setup Fits Your Site?
Site type changes what the unit needs to survive — the right build depends on access, power, and how long it needs to stay put.
Remote & Industrial Sites
EPC camps, oil and gas facilities, and desert drilling sites get crane-liftable chiller and freezer rooms that arrive plug-and-play, with no permanent foundation to plan around.
Events & Temporary Operations
Festivals and mass catering get better thermal stability than a reefer trailer; remote farms get the same mobility to pull field heat from produce before transport.
Emergency & Backup Storage
When an existing cold room fails, a skid-mounted unit can be delivered and connected fast enough to limit stock loss and avoid a compliance breach while the room stabilizes.
Built to Survive the Site, Not Just the Factory Test
Passing Factory Acceptance Testing is the easy part. The real test is a desert camp with no service technician on standby for days, where a torn door gasket or a slow refrigerant leak can go unnoticed until the temperature has already drifted. Every ChillerRoom.ae skid-mounted unit is specified for that reality: lifting points engineered for repeat relocation rather than a single move, gasket and refrigerant-circuit checks built into a fixed maintenance cadence, and a monitoring routine that catches pressure drift before it becomes a spoiled load.
Why the Steel Base Works Against You
A skid-mounted room doesn’t fail from ambient heat alone — it fails from what the sun does to bare metal sitting exposed on a steel base. Panel skin temperature can pass 70°C in direct UAE sun, driving a heat load standard specifications never account for. ChillerRoom.ae builds a 10–15% safety margin into every heat-load calculation, sized against summer peak rather than seasonal average, and requires 12–24 hours of pre-cooling before a unit takes its first load.
What the Desert and the Coast Both Do to a Coil
Sand ingress and coastal salinity fail condensers in two different ways, and both show up in remote deployments long before anyone’s watching. Dust settles on the coil and insulates it, driving discharge pressure up until the compressor short-cycles. Salt air attacks the copper-to-aluminium joint at the fin, corroding it from the inside out. ChillerRoom.ae specifies wide-fin condensers and anti-corrosive coatings on any unit heading offshore, coastal, or into open desert.
Skid-Mounted Chiller & Freezer Room Specifications
| Attribute | Chiller Room | Freezer Room |
|---|---|---|
| Temperature range | 0°C to 8°C | -18°C to -25°C |
| Panel insulation | 80–100mm PIR | 120–150mm PIR |
| Door type | Thermal-break, magnetic gasket | Heated frame, magnetic gasket |
| Defrost system | Not a standard requirement | Active electric or hot-gas cycle |
| Compressor sizing | Standard volumetric displacement | Higher-displacement compressor |
| Pressure relief fitting | Not standard | Fitted as standard |
Panel thickness above these baselines is available for deep-freeze applications below -25°C, and every dimension is customisable to a site’s access route and power supply. What doesn’t change is the industrial exterior finish — these units are built for function on a working site, not for a customer-facing storefront.
From a Single Unit to a Full Site Deployment
A single construction camp or drilling site needs one compact chiller skid and nothing else. A large offshore platform or a multi-hundred-worker EPC camp needs several units running in parallel, each drawing from the same site power supply. ChillerRoom.ae specifies inverter-driven compressors and EC fan motors across every size, since these cut running costs regardless of how many units are deployed on one site.
What Goes Into Every Skid-Mounted Cold Room
Six components do the actual work of keeping a skid-mounted cold room liftable, sealed, and running — each specified on its own, not as a generic add-on.
Structural Steel Skid
Galvanized or epoxy-coated I-beams with lifting points positioned to the unit's centre of gravity, so a crane lift doesn't twist the panels out of shape.

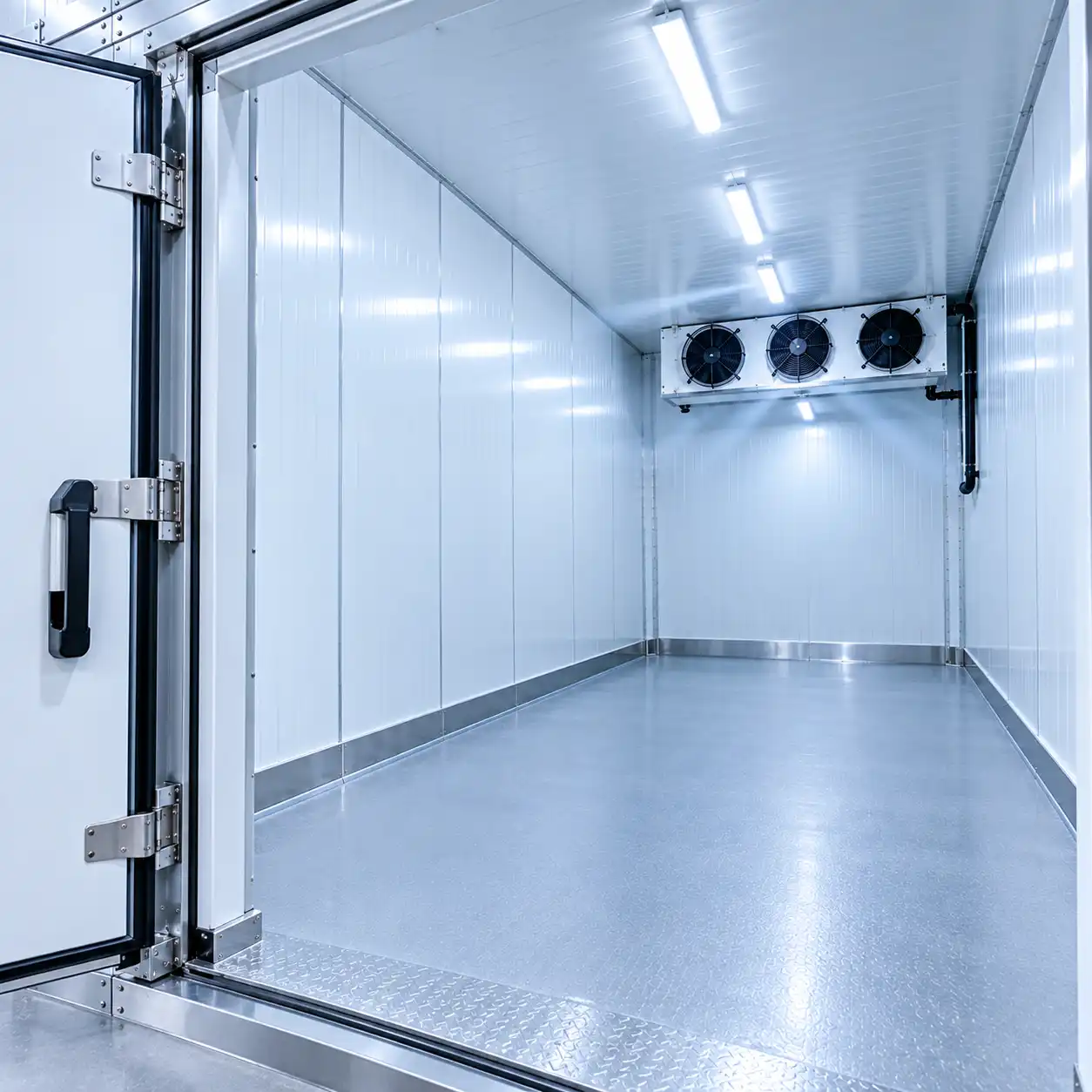

Insulated PIR Panels
Tongue-and-groove panels with eccentric camlock seals for an airtight fit, chosen over PUF for fire resistance and low smoke.
Reinforced Flooring
Aluminium chequer plate or phenolic resin over the insulated floor panel, built to take repeated hand pallet truck traffic without cracking.
Doors & Safety Release
Thermal-break doors with magnetic gaskets and an internal emergency release as standard, plus heated frames on every freezer configuration.

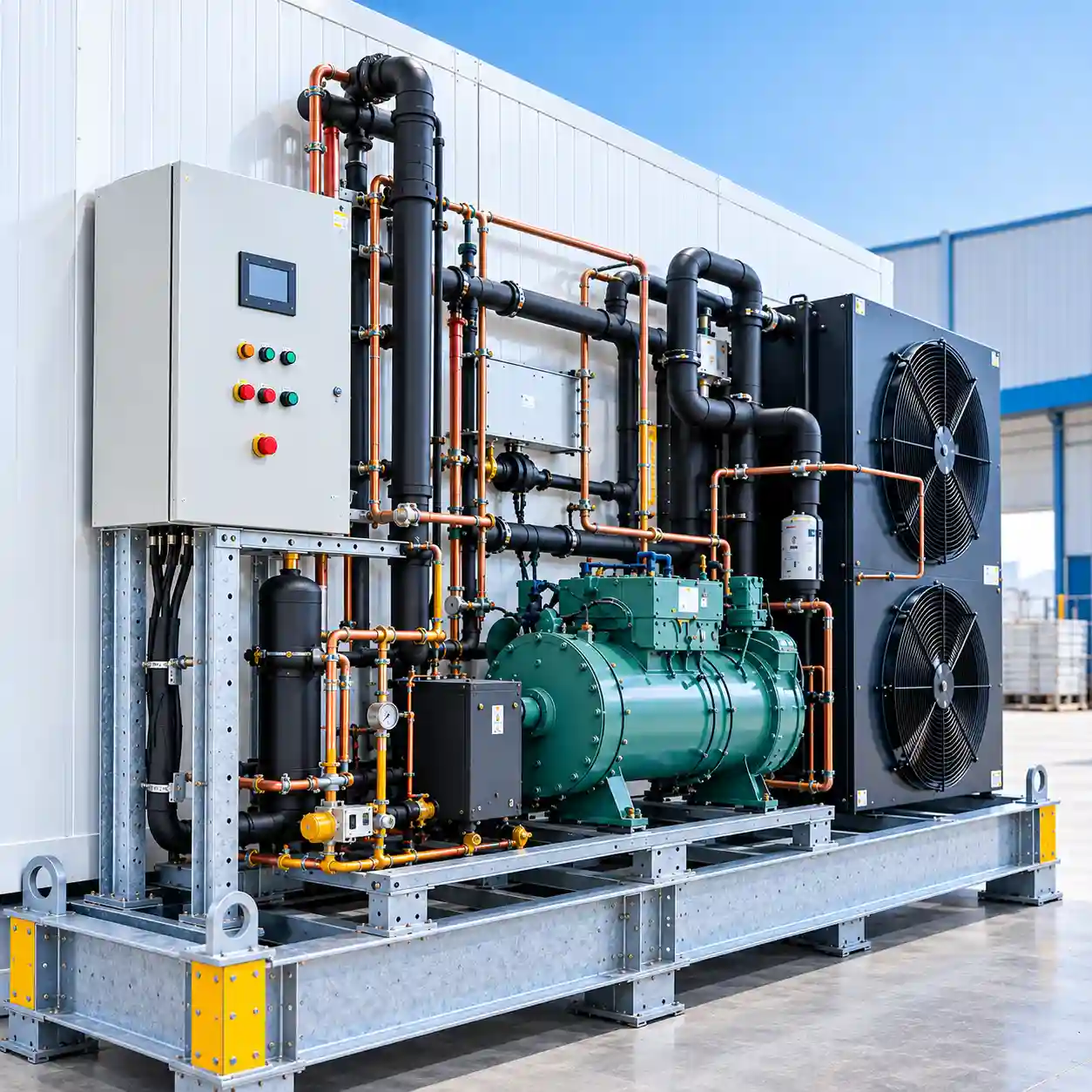

Integrated Refrigeration
Monoblock or split system, mounted and piped on the skid at the factory, so no on-site refrigeration technician is needed to get it running.
Digital Monitoring
Temperature logging and alarm alerts available as a specified option on every unit — standard for HACCP or pharma-grade compliance needs.
Built to Meet UAE Regulatory Requirements
A skid-mounted cold room needs to meet fire, food-safety, electrical, and mechanical requirements before it can hold product on site — and which authority applies depends on the emirate. ChillerRoom.ae designs every unit to align with the applicable standards for its deployment location.
Civil Defense Approval
Insulated panels used in a commercial cold room require civil defense sign-off in their emirate of installation — Dubai Civil Defense (DCD) governs Dubai — as a certification step separate from the panel's material spec.
Food Code Limits
Dubai Municipality Food Code 2.0 and ADAFSA require ≤5°C for chilled goods and ≤-18°C for frozen, backed by digital or manual temperature logging.
Utility Electrical Standards
Every unit is wired for a standard 400V, 3-phase, 50Hz supply, matching UAE utility requirements — DEWA in Dubai, ADDC in Abu Dhabi — out of the box.
Refrigeration Safety Codes
Mechanical design follows ASHRAE 15 or EN 378 for refrigerant safety, with skid piping built to ASME B31.5.
Skid-Mounted vs Modular vs Container Cold Rooms
| Factor | Skid-Mounted | Modular Walk-In | Container |
|---|---|---|---|
| Mobility | Relocated intact by crane/forklift | Dismantled panel by panel to move | Built for intermodal transport |
| Deployment speed | Immediate on power connection | Days of on-site assembly | Immediate on power connection |
| Foundation | Level ground or plinths | Prepared concrete floor | Level ground or plinths |
| Customization | Custom dimensions, door placement | Fits complex existing spaces | Limited to ISO dimensions |
| Ideal use | Remote sites, temporary capacity | Permanent indoor installations | International shipping, aggressive sites |
| Refrigeration setup | Pre-integrated at the factory | Installed on site | Pre-integrated at the factory |
For a permanent, indoor installation such as a restaurant or supermarket, our Walk-In Chiller range is the better fit. For a short-term or seasonal need, see our Portable Chiller solutions. If international shipping compatibility is the priority, our Container Chiller Room range is built to ISO dimensions.
How We Deliver a Skid-Mounted Cold Room
Panels go onto the skid first, then the refrigeration system is piped and wired in. From there, it’s pressure testing, a vacuum dehydration cycle, refrigerant charging, and a live pull-down test — nothing leaves the workshop until it’s actually held its rated temperature, not just on paper.
Once it reaches site, there’s not much left. Put it in place, connect power and drainage, commission it, done. What we need from you beforehand is simpler than people expect: a level base, three-phase power already live, and room for a crane or forklift to get in and out.
Frequently Asked Questions
It’s a fully insulated refrigeration unit built straight onto a steel base — the enclosure and the refrigeration system aren’t two things bolted together later, they’re one module from the start. That’s what lets the whole thing be lifted and moved to a new site without taking it apart first.
A refrigeration skid is just the machinery on its own — compressor, piping, controls sitting on a steel frame, with no structure built around them yet. A skid-mounted cold room includes that system plus the full insulated structure around it, ready to store product on arrival.
No. The steel skid itself carries the structural load, so a flat, compacted surface or basic support plinths are enough. This is one of the main reasons skid-mounted units deploy faster than a built-in-place cold room.
Yes, when it’s specified for it. Thick PIR insulation, a tropicalized condenser, and a heat-load calculation with a safety margin for 45–50°C ambient are what separate a unit that survives summer from one that doesn’t.
Because fabrication and testing happen at the factory, on-site work is limited to positioning the unit, connecting power and drainage, and commissioning — typically a matter of hours rather than the weeks a built-in-place room requires.
There’s no fixed price list — every unit is custom. Cost depends mainly on dimensions, the chiller-versus-freezer setpoint, compressor brand, and any anti-corrosion or monitoring options. Freezer configurations run higher than chillers due to thicker insulation and added components.
Yes. Dimensions, door placement, and refrigeration capacity are built to the site rather than a fixed catalogue size — from single-site overflow storage to multi-unit offshore deployments. These are built for industrial and back-of-house commercial use, not as a customer-facing retail or display unit.
Need a Skid-Mounted Cold Room UAE?
Tell us your site location, power access, and how long the unit needs to stay in place. ChillerRoom.ae will design, fabricate, and deliver a skid-mounted chiller or freezer room matched to the job — from a single unit on a construction site to a multi-unit deployment offshore, across Dubai, Abu Dhabi, Sharjah, and Ajman.
